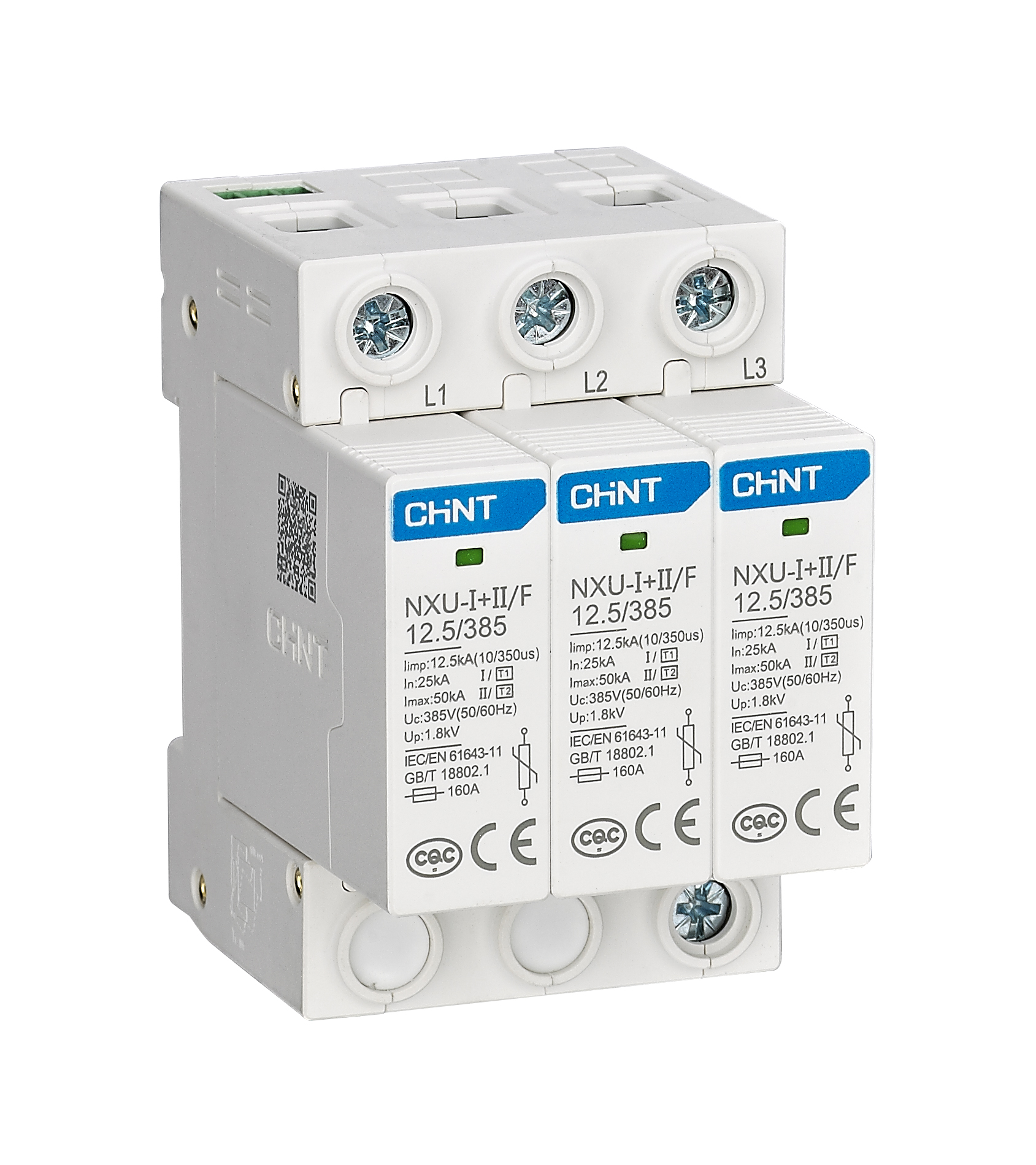

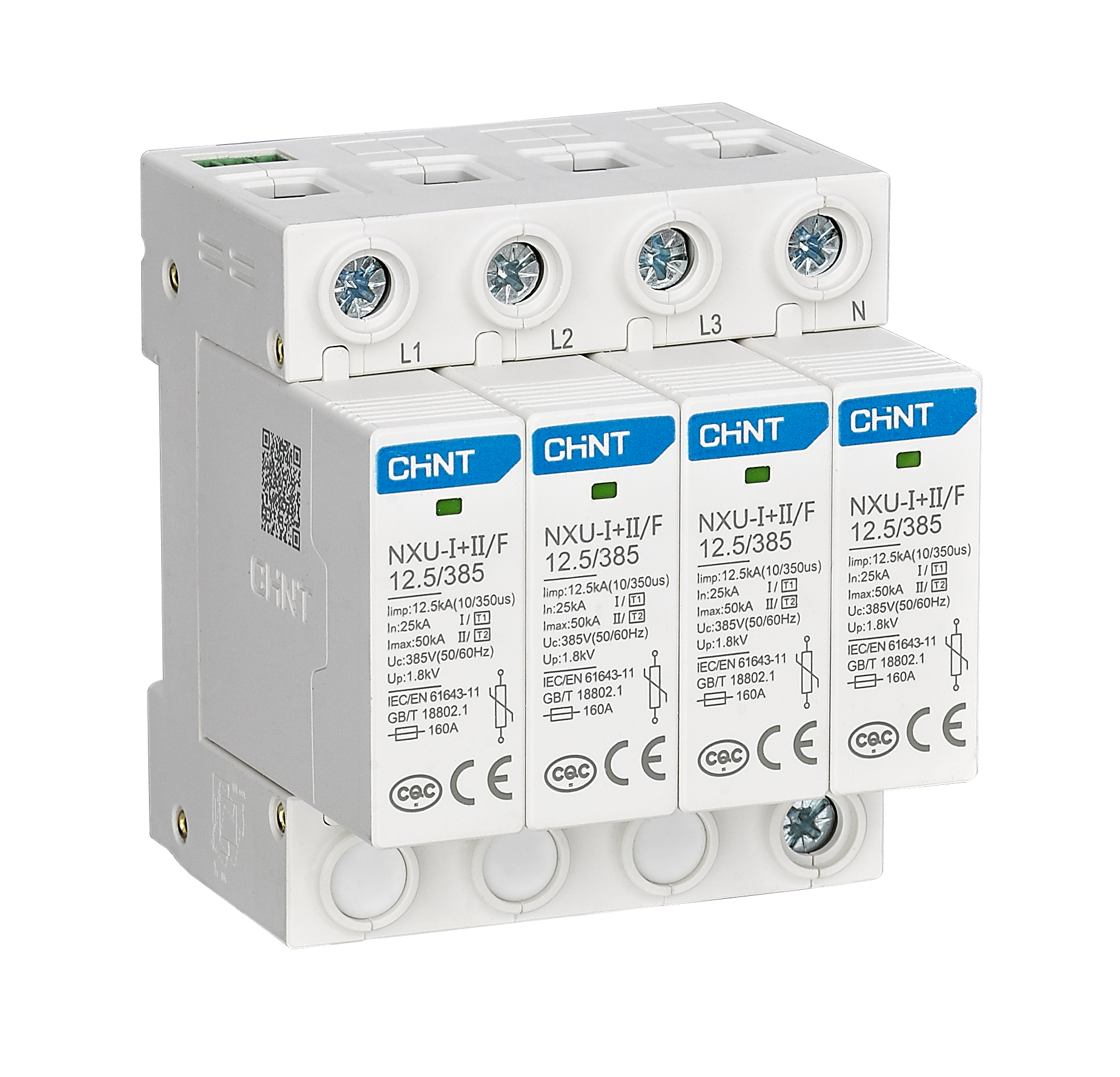

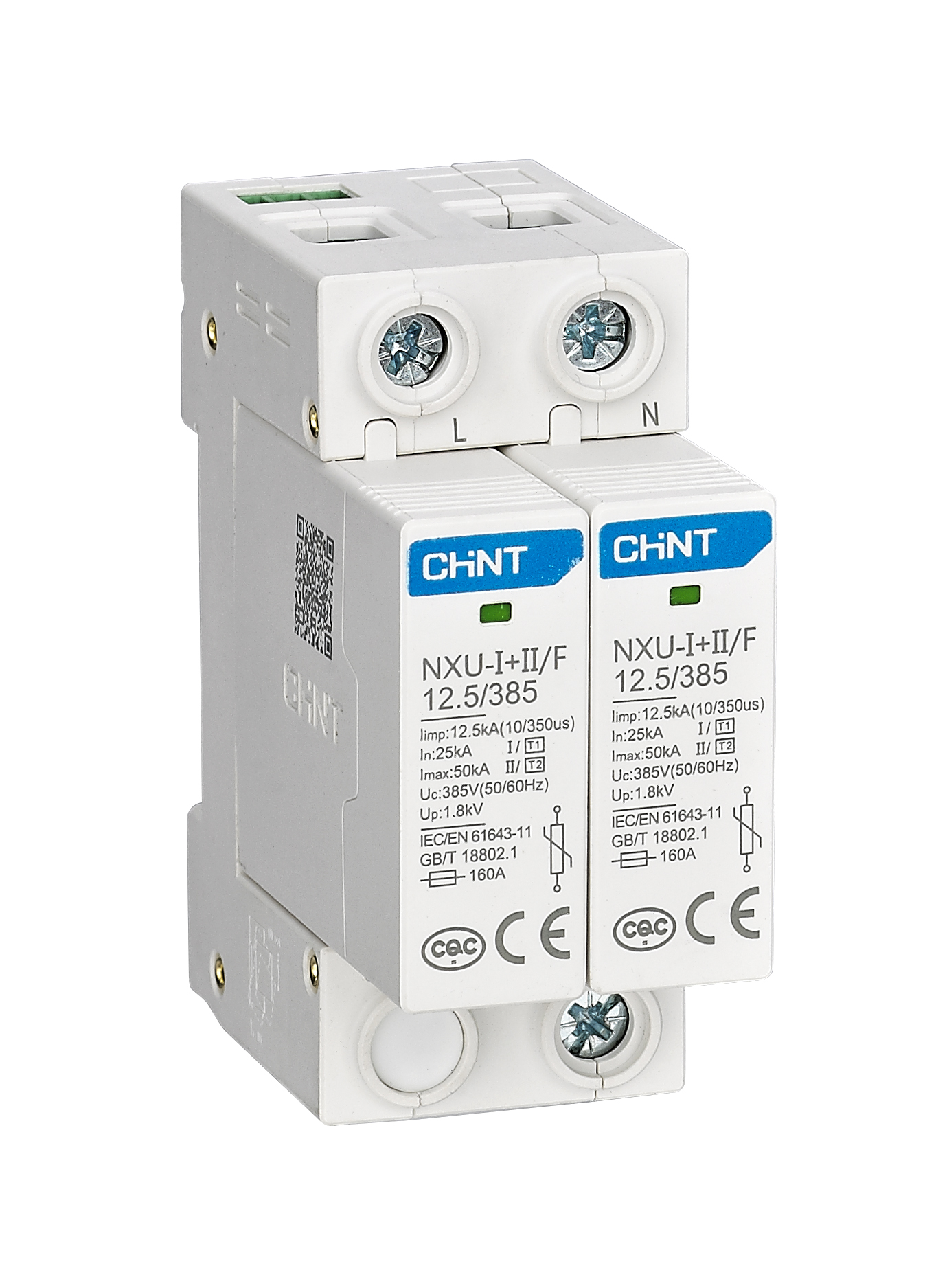

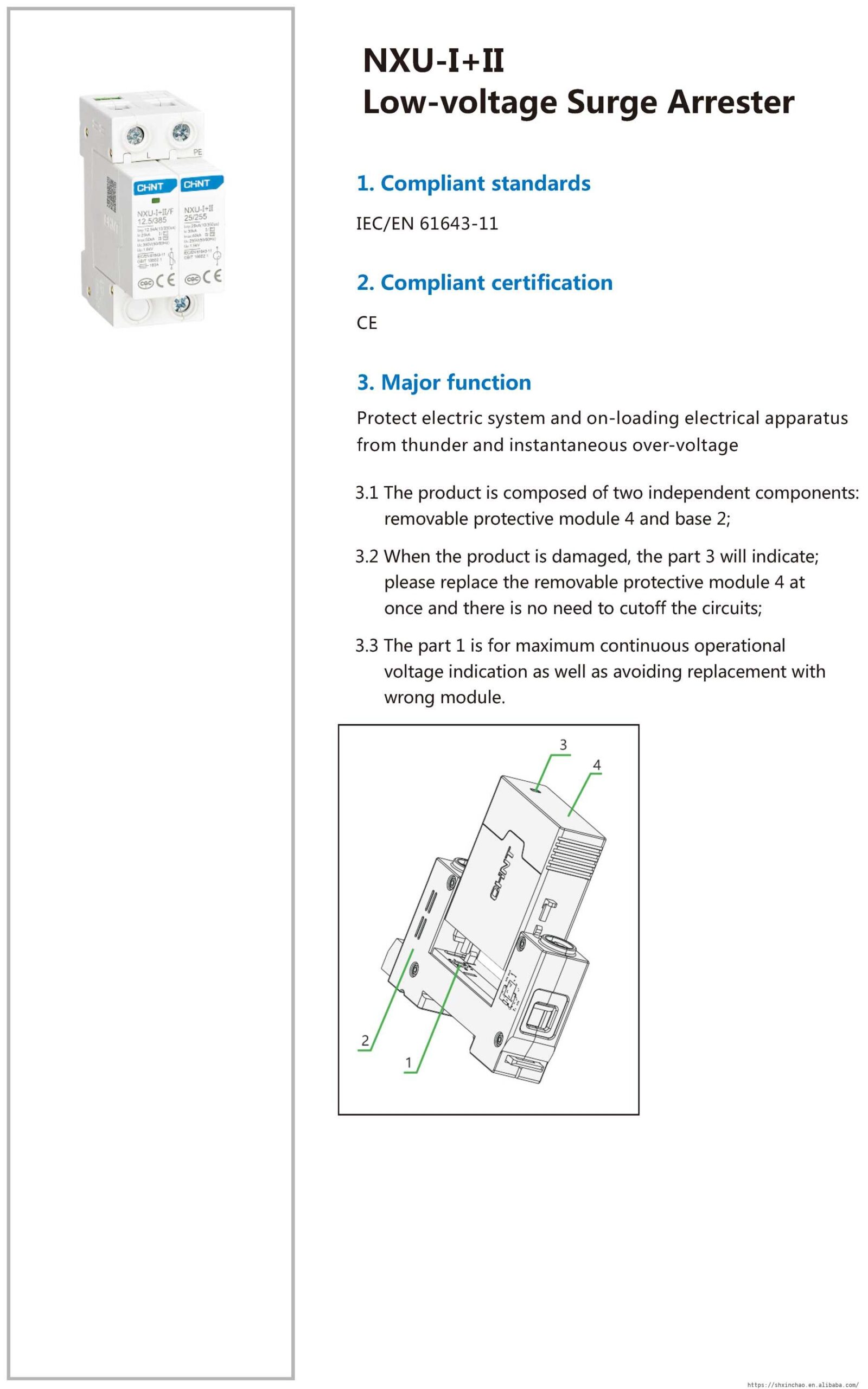

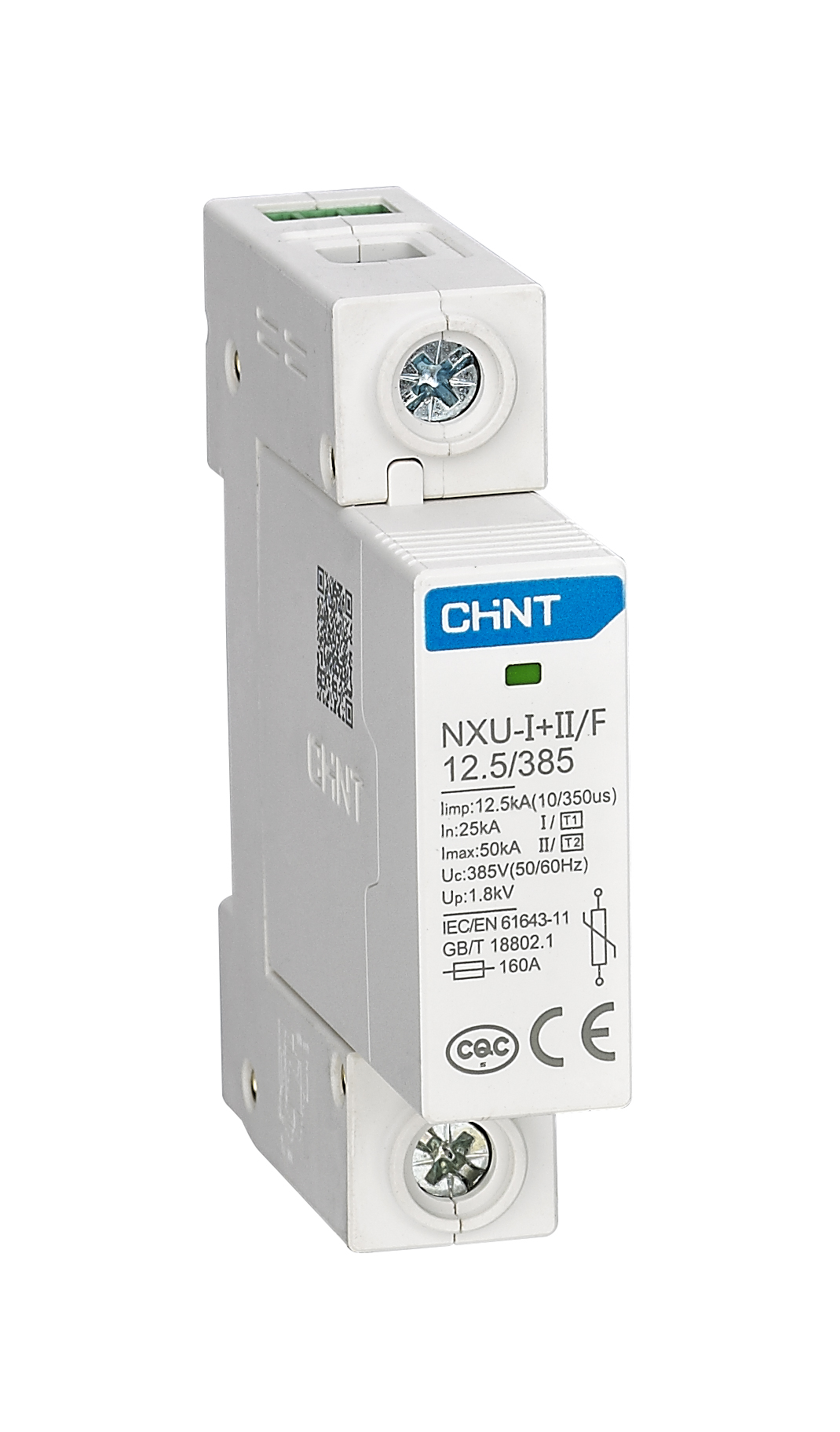

Chint NXU-I+II Surge Protector T1 T2 Type 1 and 2 Type B and C Class I and II 40kA 50kA 1P 2P 3P 4P CHNT Surge Arrester

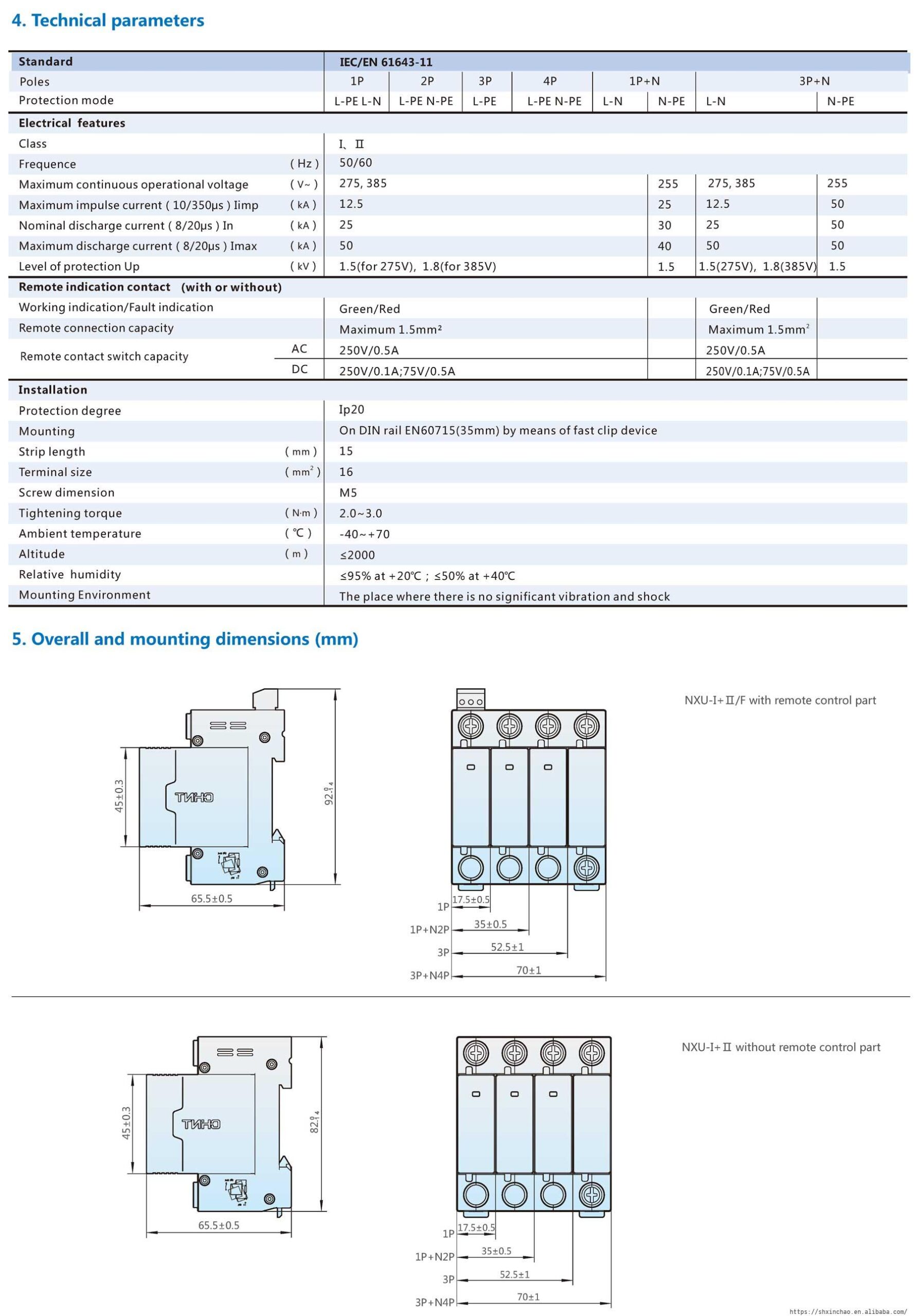

Standard: IEC/EN 61643-11
Protect class: I, II
Rate maximum continuous operational voltage: 275V, 385V
Poles: 1P, 2P, 3P,4P, 1P+N, 3P+N
Protection mode: L-PE, L-N, N-PE
Maximum discharge current(8/20μs)Imax: 50kA
Level of protection Up: 1.5kV for 275V; 1.8kV for 385V
Alternative function: Remote indication contact
Ambient temperature: -40 to +70°C
