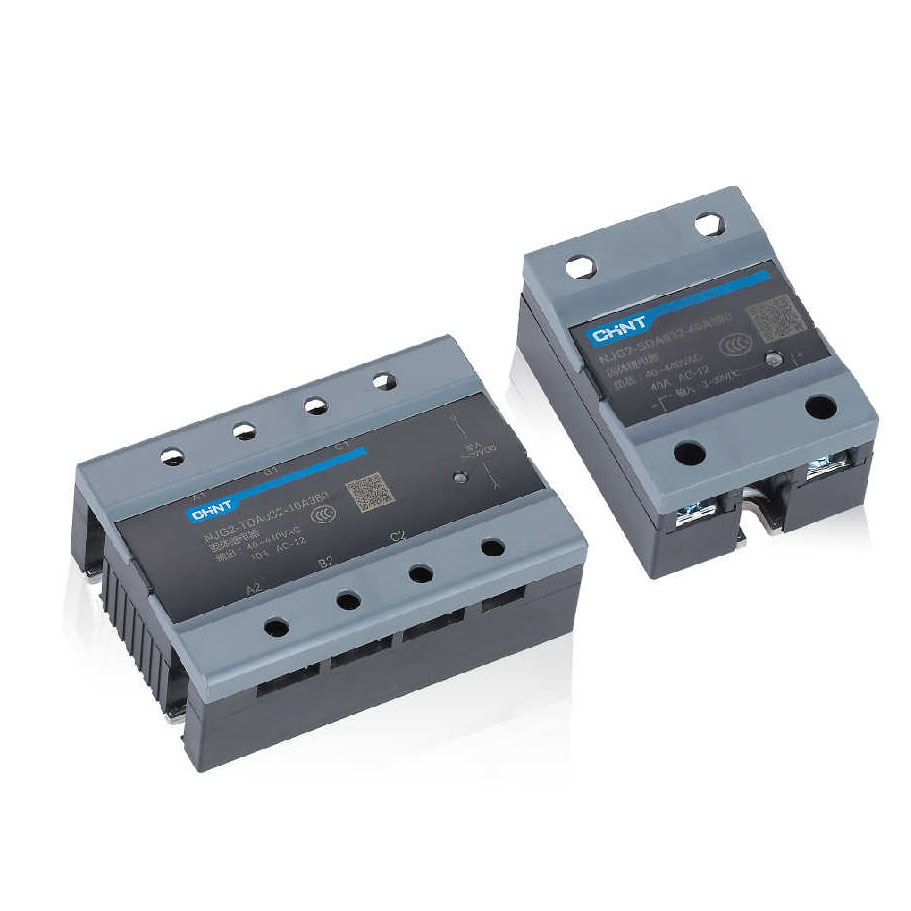

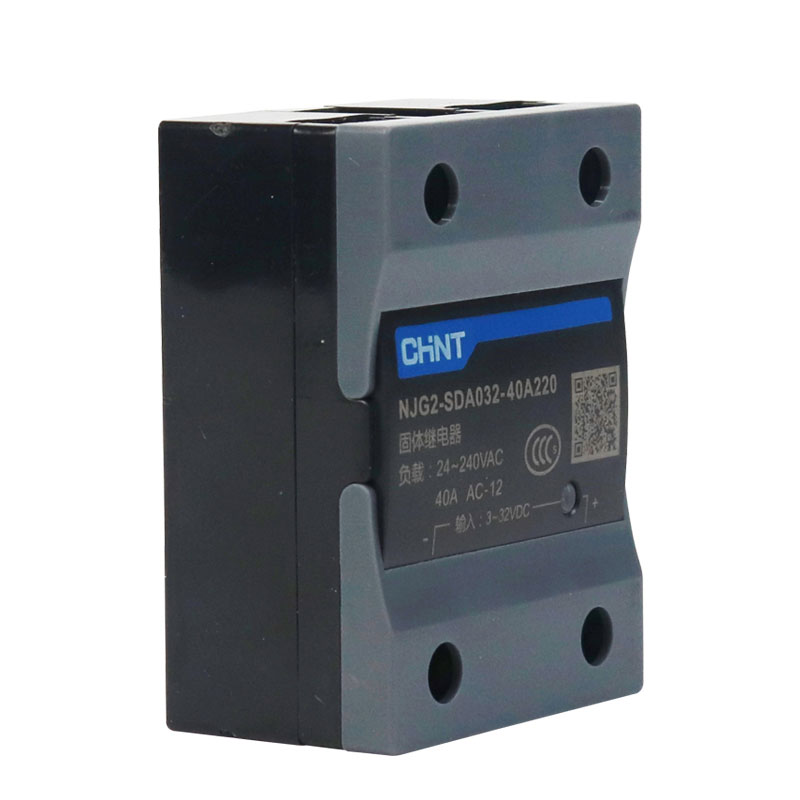

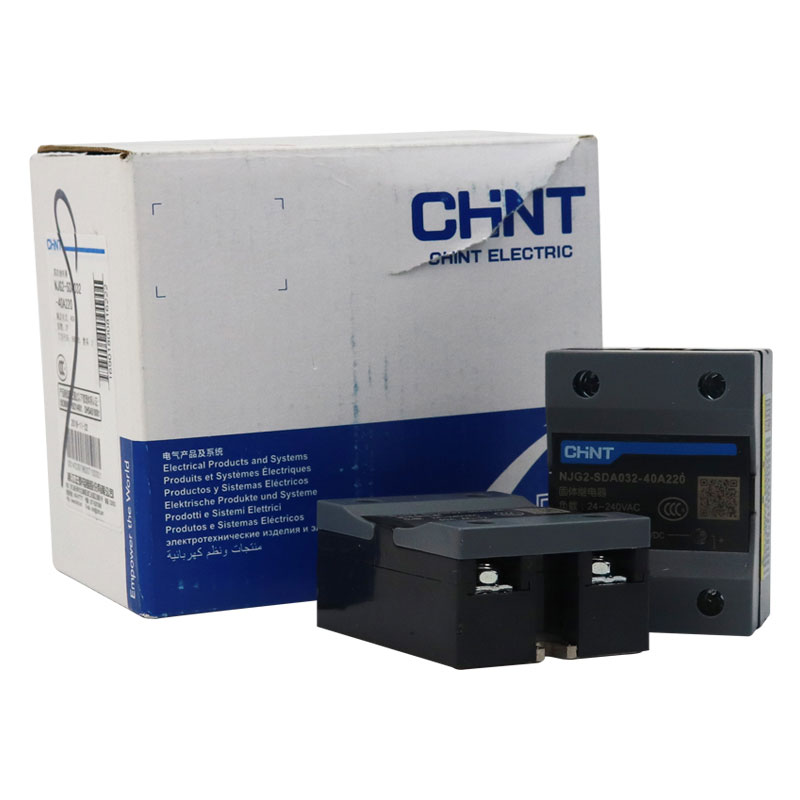

Chint NJG2 Single Phase Three Phase 25A 40A 60A 80A 100A input DC AC output AC 220V 380V DC 12V to 250V CHNT Solid State Relay

Chint NJG2 Single Phase Three Phase 25A 40A 60A 80A 100A input DC AC output AC 220V 380V DC 12V to 250V CHNT Solid State Relay

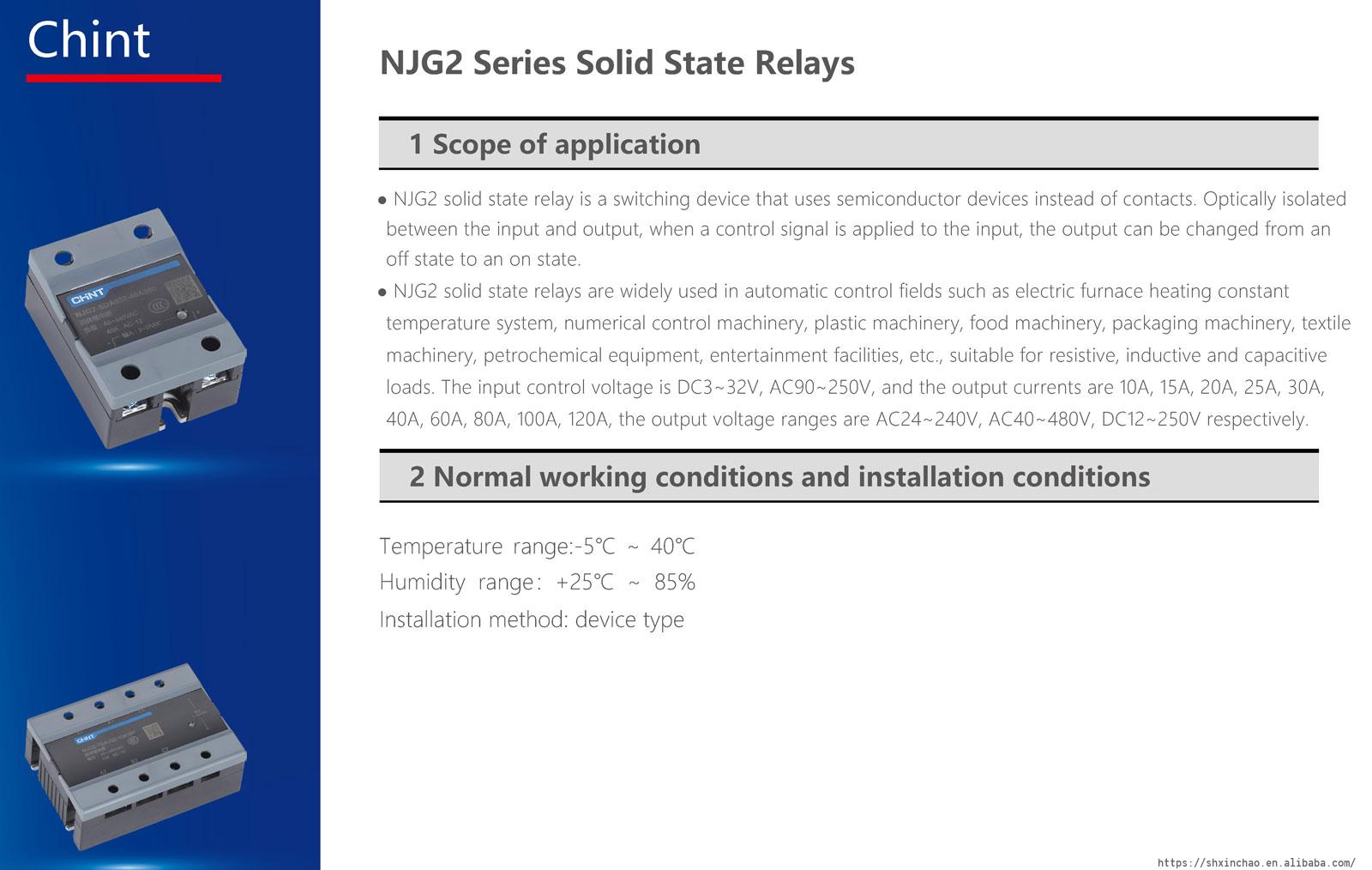

Chint NJG2 solid state relay is a switching device that uses semiconductor devices instead of contacts. Optically isolated between the input and output, when a control signal is applied to the input, the output can be changed from an off state to an on state.

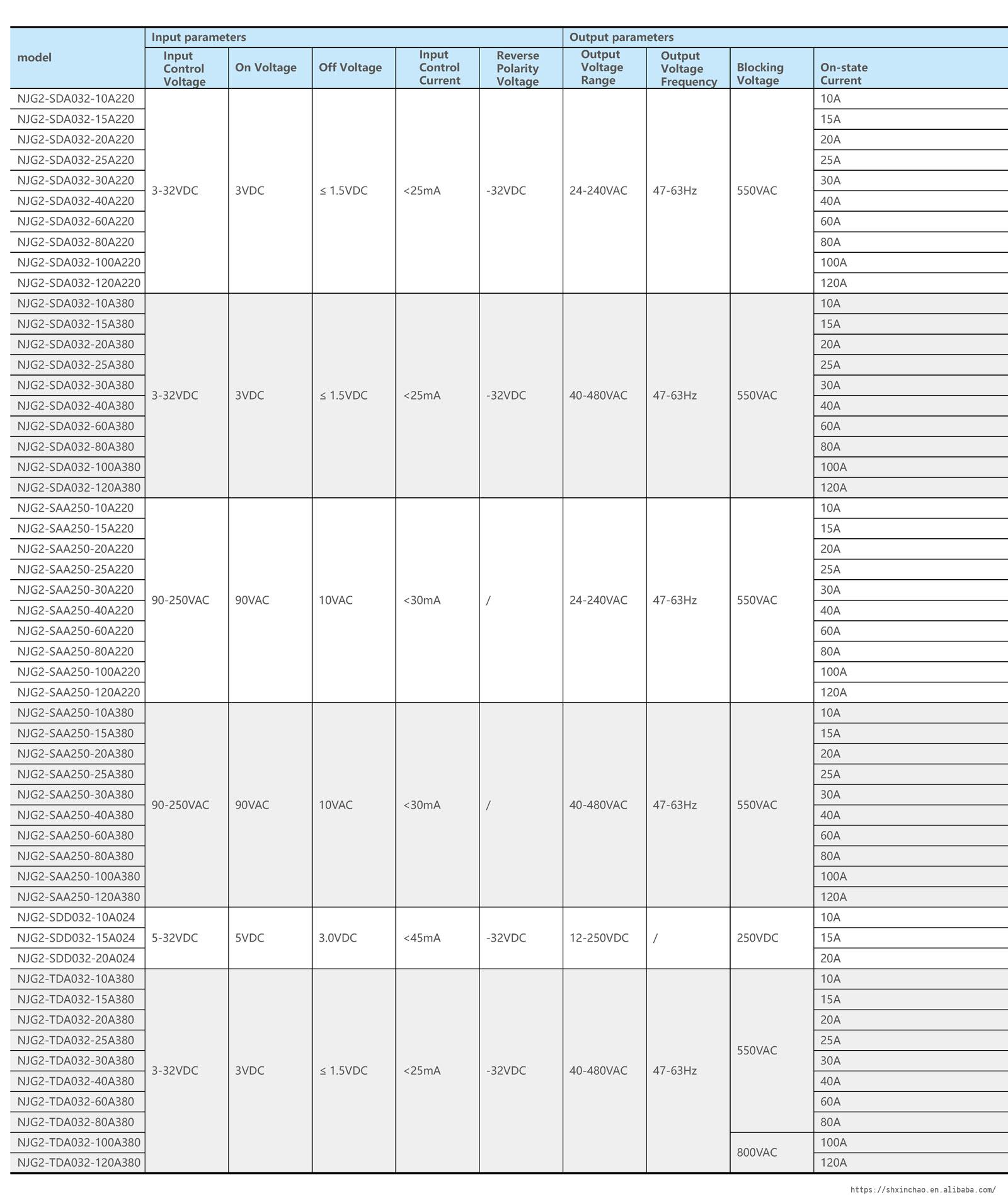

Chint NJG2 solid state relays are widely used in automatic control fields such as electric furnace heating constant temperature system, numerical control machinery, plastic machinery, food machinery, packaging machinery, textile machinery, petrochemical equipment, entertainment facilities, etc., suitable for resistive, inductive and capacitive loads. The input control voltage is DC3~32V, AC90~250V, and the output currents are 10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A, 100A, 120A, the output voltage ranges are AC24~240V, AC40~480V, DC12~250V respectively.

Temperature range: -5℃ ~ 40℃
Humidity range: +25℃ ~ 85%
Installation method: device type
