Chint CKSG 7% 450V 480V 525V 1.4 1.75 2.1 2.45 2.8 3.15 3.5 4.2 4.9 5.6 kVAR CHNT Anti Harmonic filter detuned Series Reactor

$1.00

Capactiy:5.6
Brand Name:Chint
Place of Origin:China
Model Number:CKSG
Rated Voltage:450V, 480V, 525V
Rated Current:0.7 – 5.6 kVAR
Brand:Chint
SKU: 1770405800330665984 Category: Chint Capacitor & Reactors
  • Description
Description

Chint CKSG 7% 450V 480V 525V 1.4 1.75 2.1 2.45 2.8 3.15 3.5 4.2 4.9 5.6 kVAR CHNT Anti Harmonic filter detuned Series Reactor

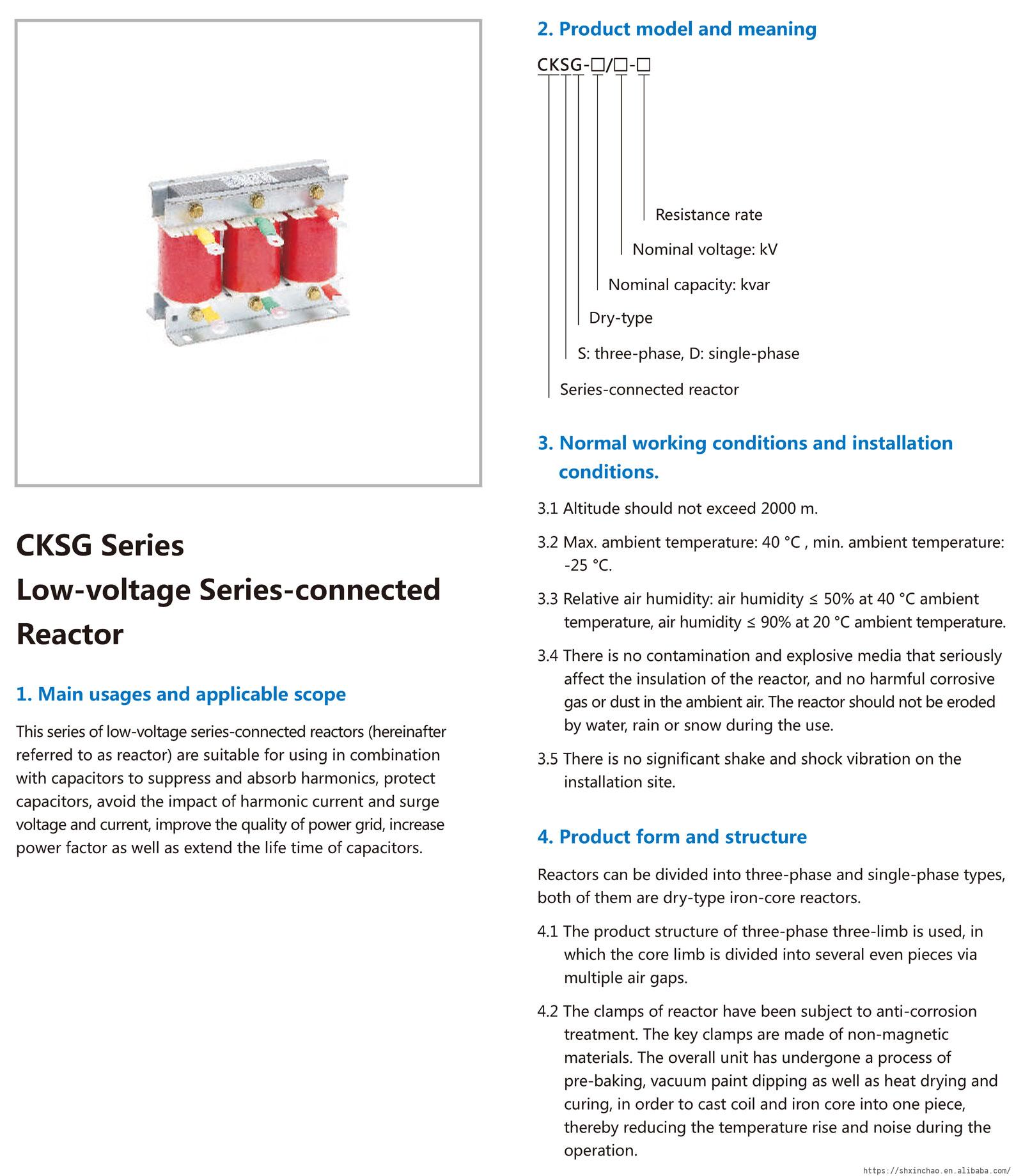

Chint CKSG Series Low-voltage Series-connected Reactor



Main usages and applicable scope
This series of low-voltage series-connected reactors (hereinafter referred to as reactor) are suitable for using in combination with capacitors to suppress and absorb harmonics, protect capacitors, avoid the impact of harmonic current and surge voltage and current, improve the quality of power grid, increase power factor as well as extend the life time of capacitors.



Product form and structure

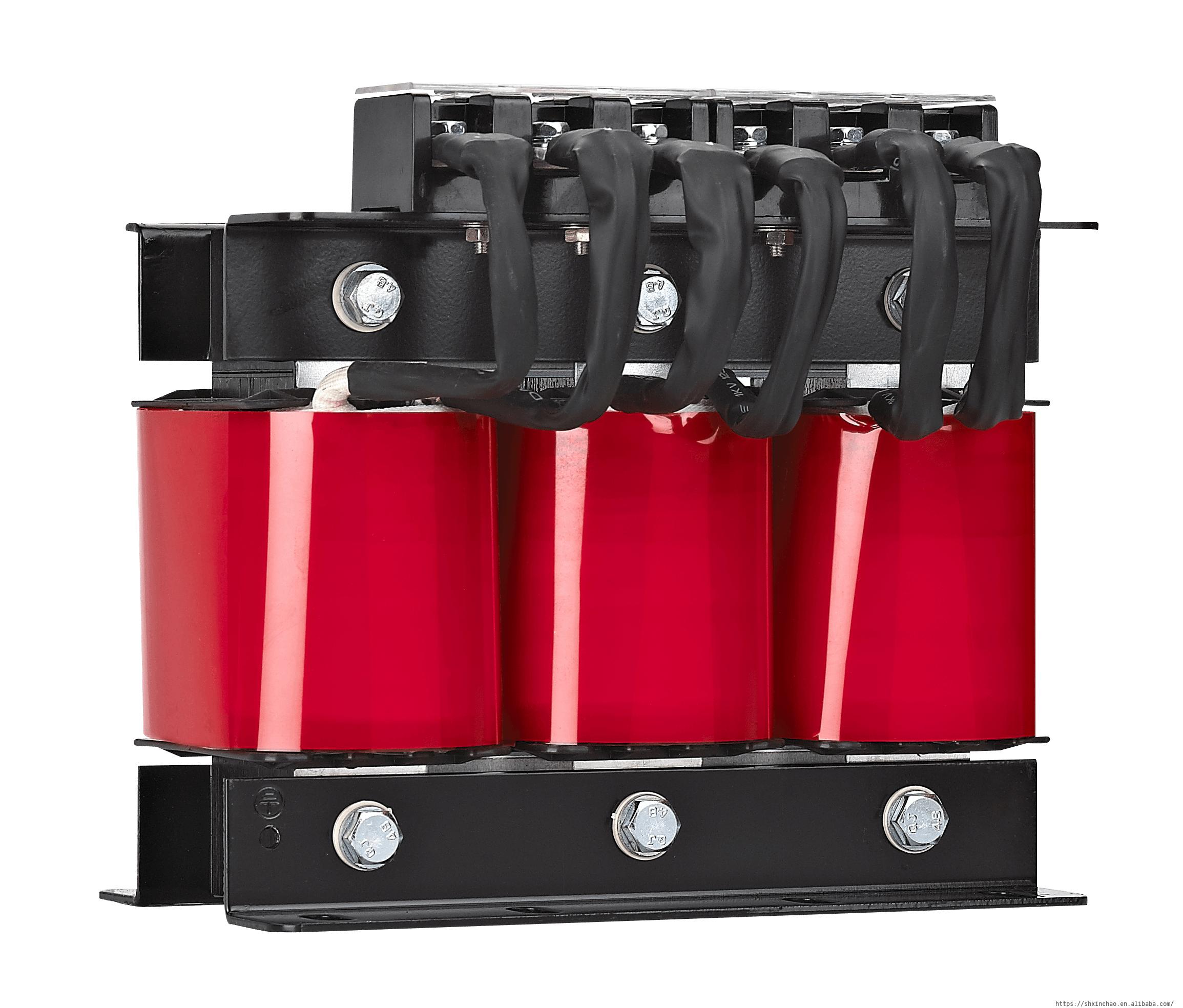

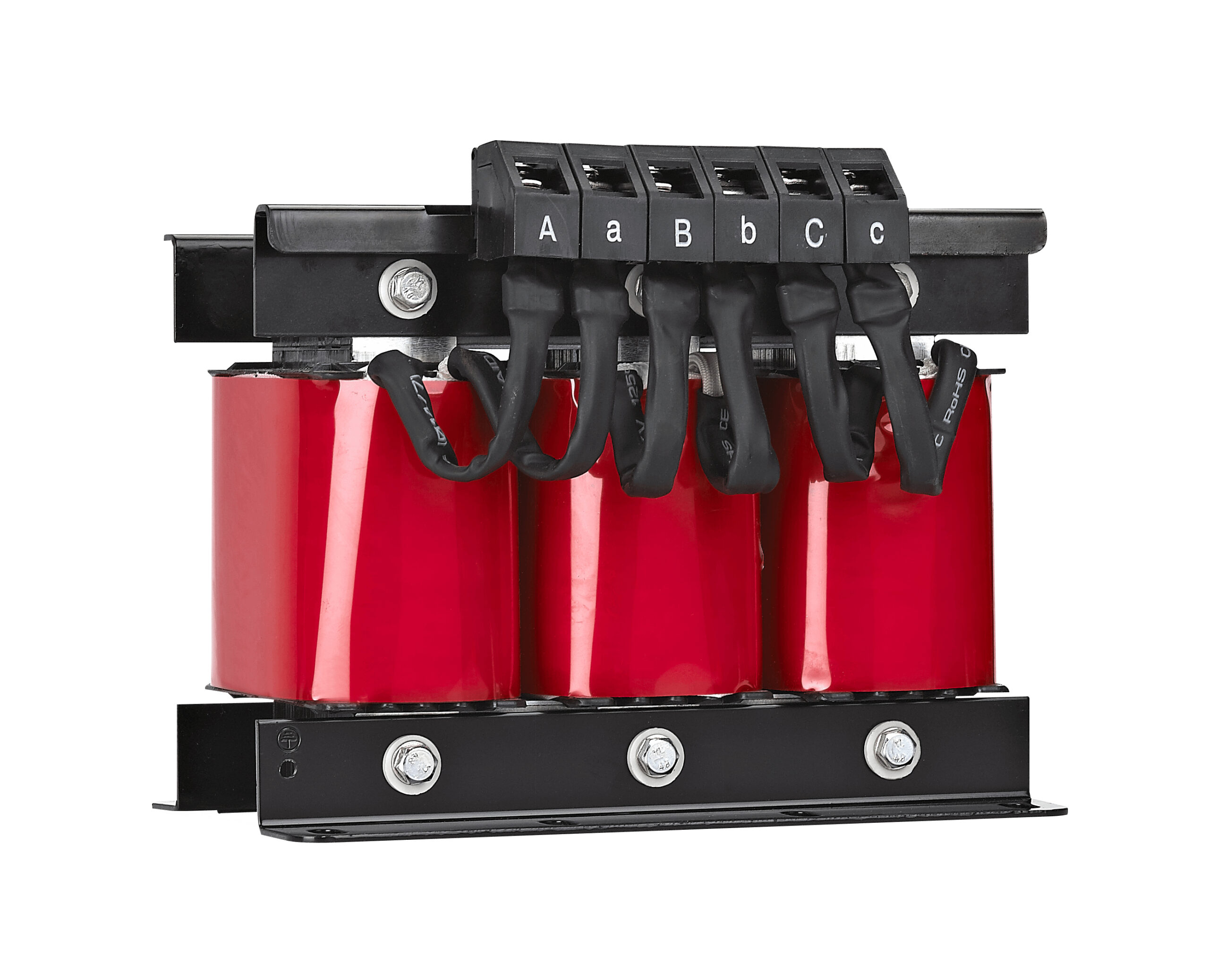

Reactors can be divided into three-phase and single-phase types, both of them are dry-type iron-core reactors.
    The product structure of three-phase three-limb is used, in which the core limb is divided into several even pieces via multiple air gaps.
    The clamps of reactor have been subject to anti-corrosion treatment. The key clamps are made of non-magnetic materials. The overall unit has undergone a process of pre-baking, vacuum paint dipping as well as heat drying and curing, in order to cast coil and iron core into one piece, thereby reducing the temperature rise and noise during the operation.
