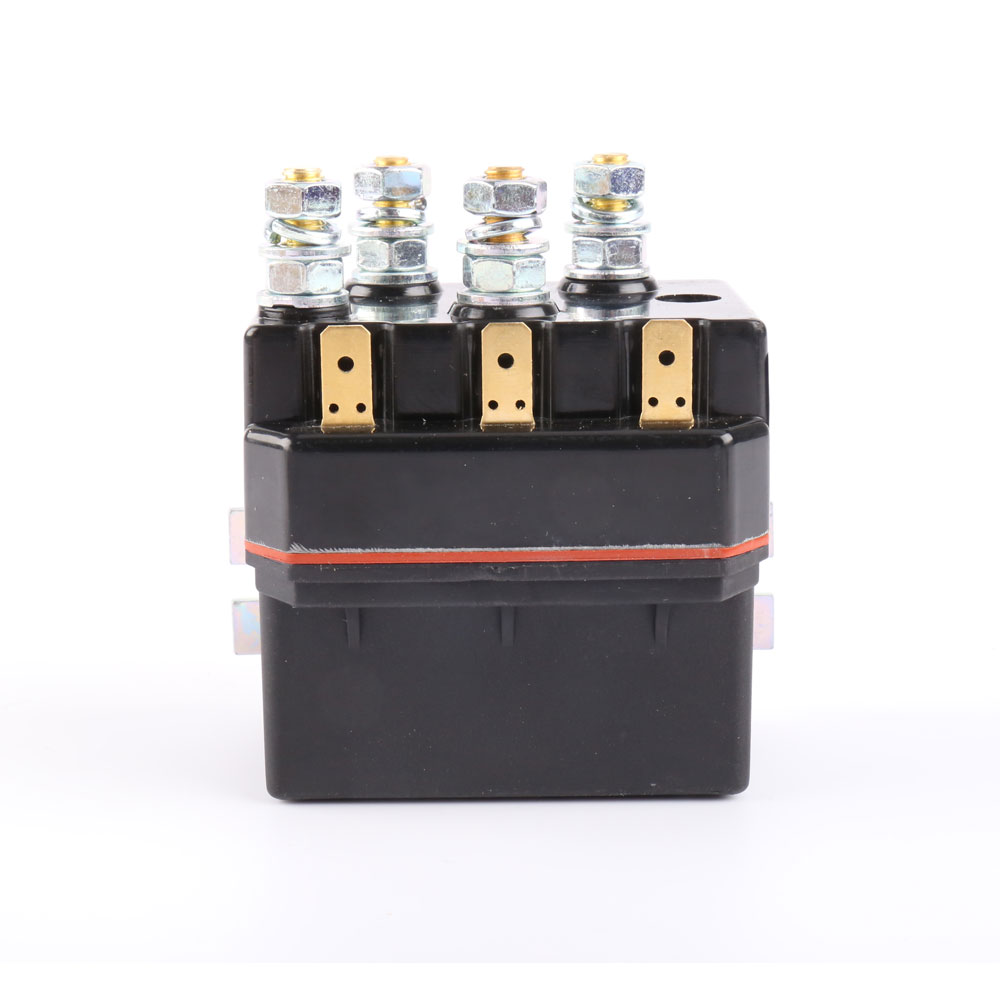

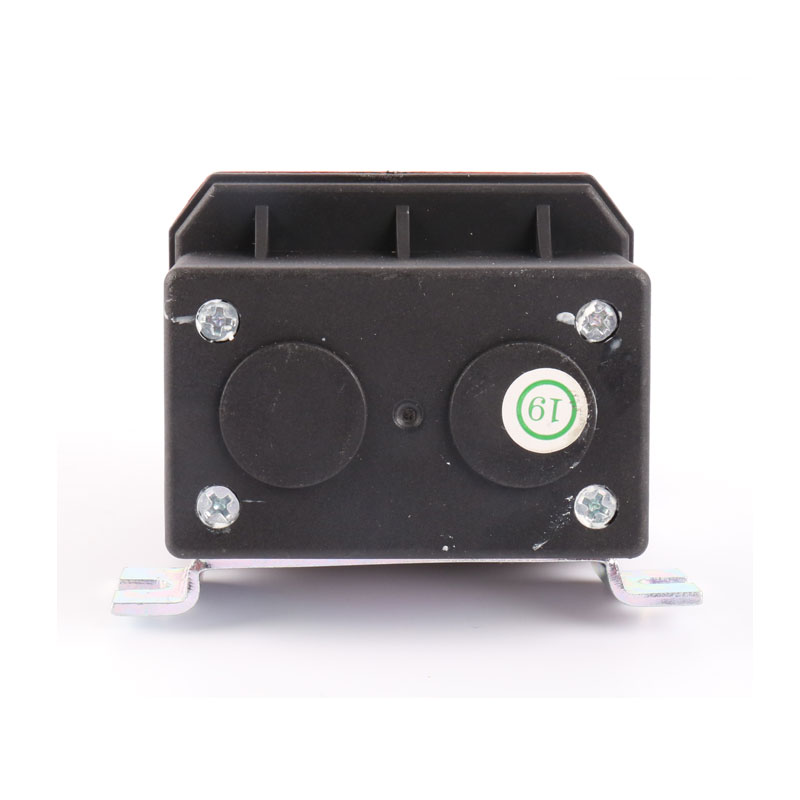

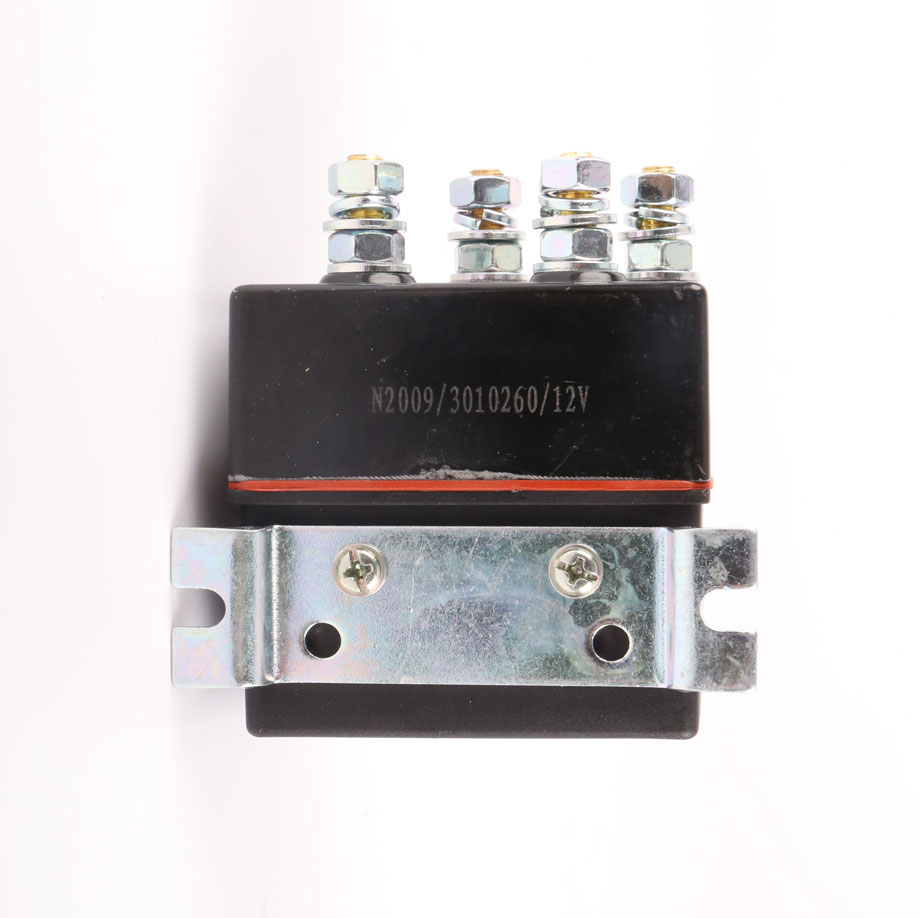

Albright DC66P replacement Intermittent 200A 250A 12 Volt 24 Volt DC Relay Winch Motor Reversing Solenoid Switch

$0.00

Electricity Type:DC
Brand Name:Newtrend or OEM
Application:Industrial Automation
Place of Origin:China
Province:Zhejiang
Model Number:DC66P
Mounting Type:FREE STANDING
Phase:1
Main Circuit Rating Current:Continuous 50A Intermittent 200A
SKU: 60082982552 Category:
Description

Albright DC66P replacement Intermittent 200A 250A 12 Volt 24 Volt DC Relay Winch Motor Reversing Solenoid Switch



Continuous 50A, Intermittent 200A, Overload 200A

DC Coil: 12V 24V 36V 48V 60V 110V 220V

suitable for Winches, Tarp Motor, Chargers, Batteries, Electric Vehicles etc.



Application:



The product has two sets of contact switch and could be used for auto electric winch, telecommunication equipments, engineering machinery, storage battery, electric forklift trucks, trains, ships, uninterruptible power supply, electric control system, etc.







Additional information
Weight 0.7 kg
Dimensions 10 × 10 × 10 cm
Number of Pole

Single Pole Double Throw for Motor Reversing
Main Circuit Rating Voltage

12VDC, 24VDC
