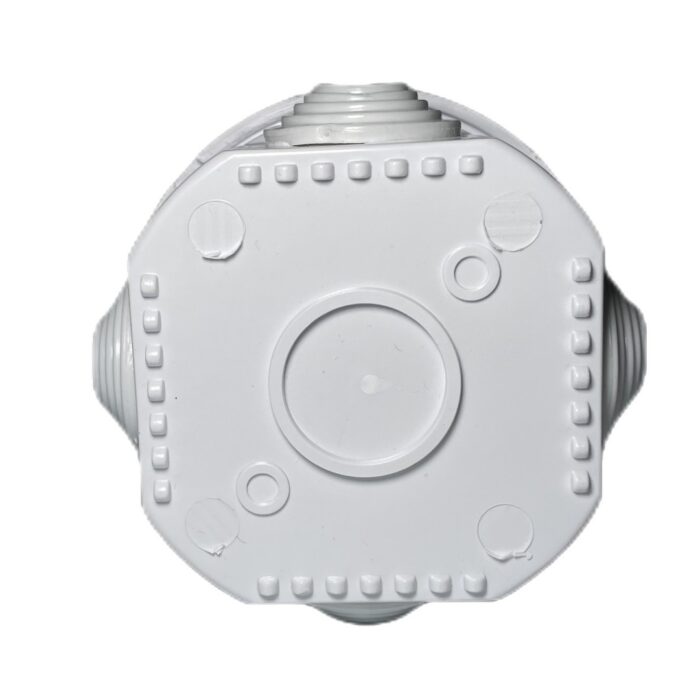

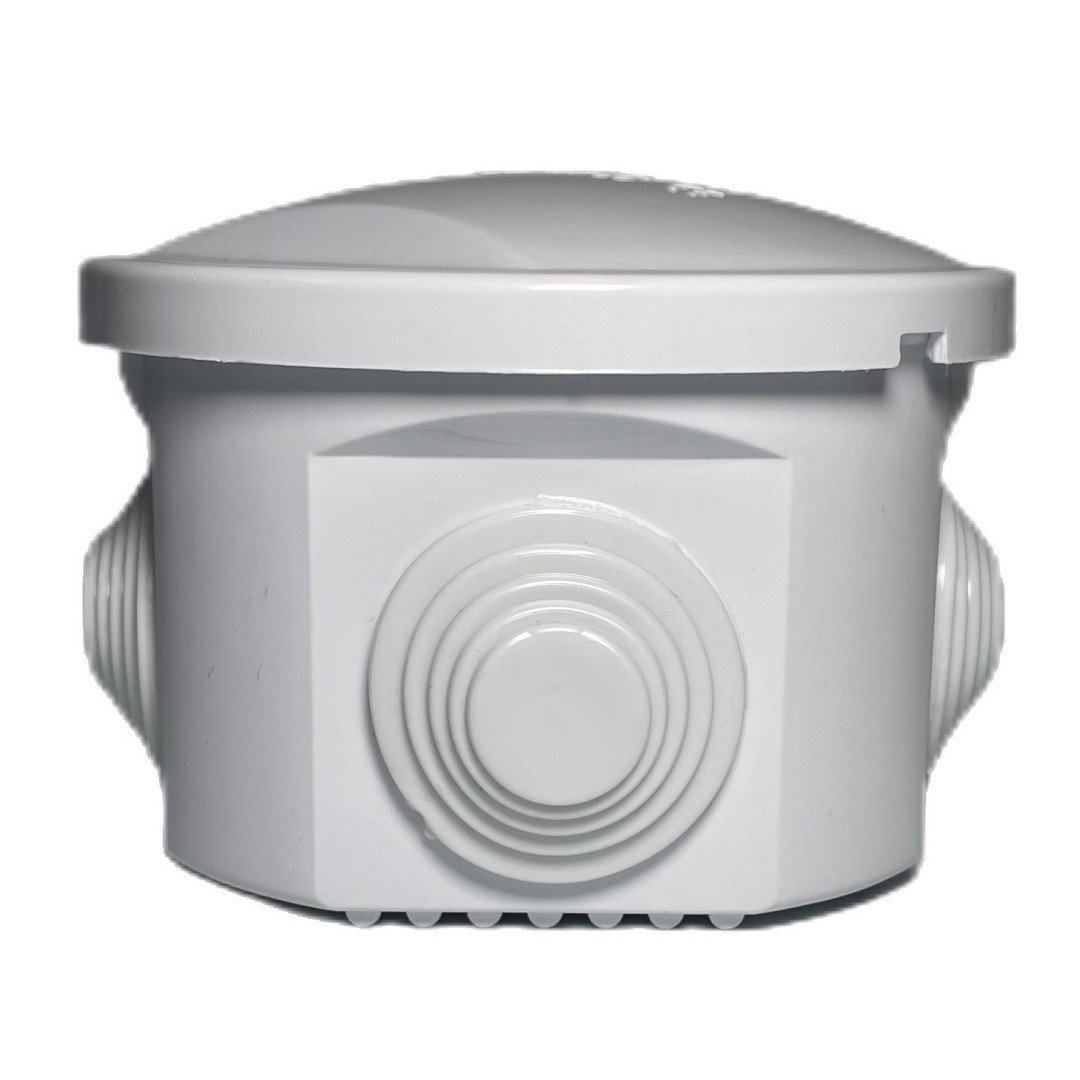

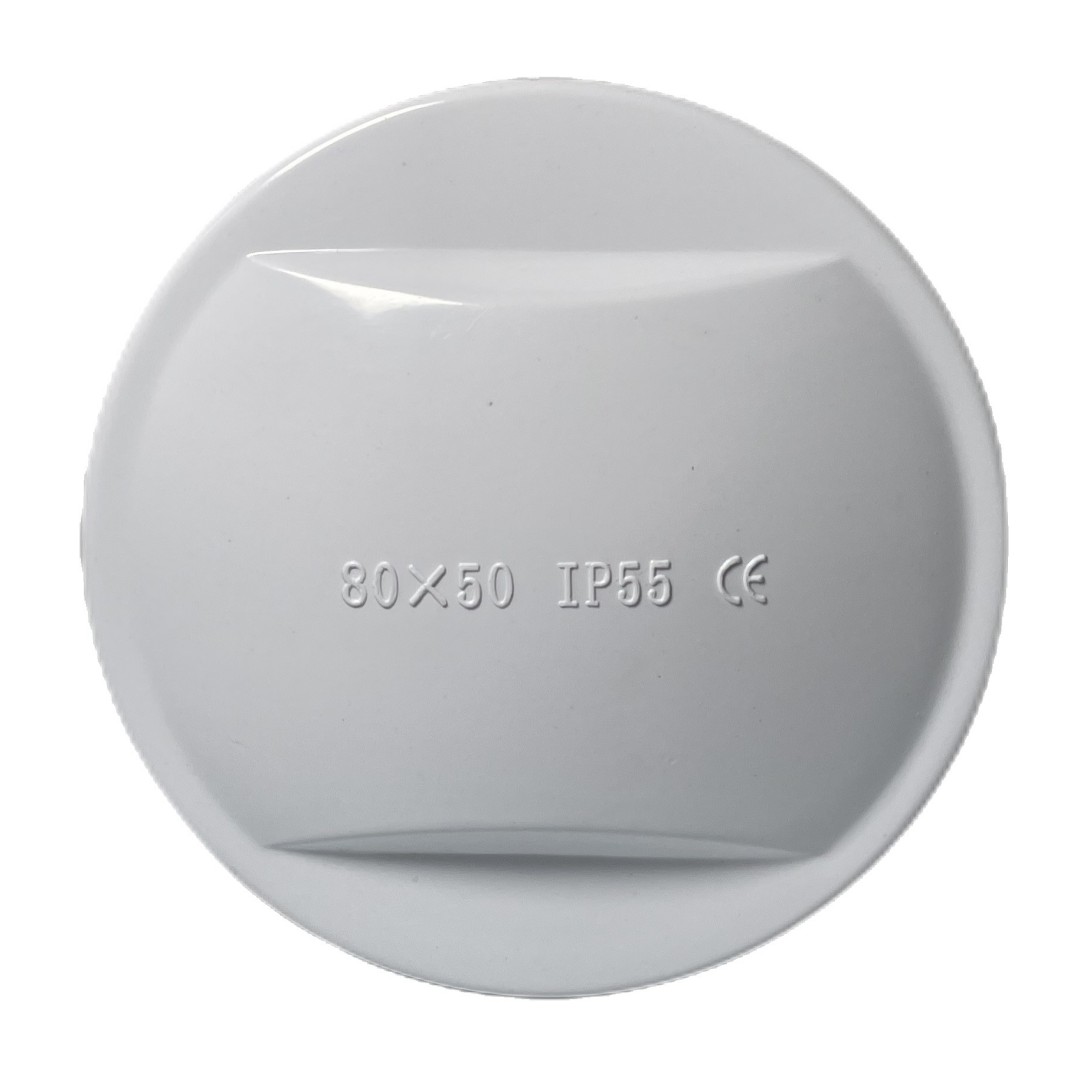

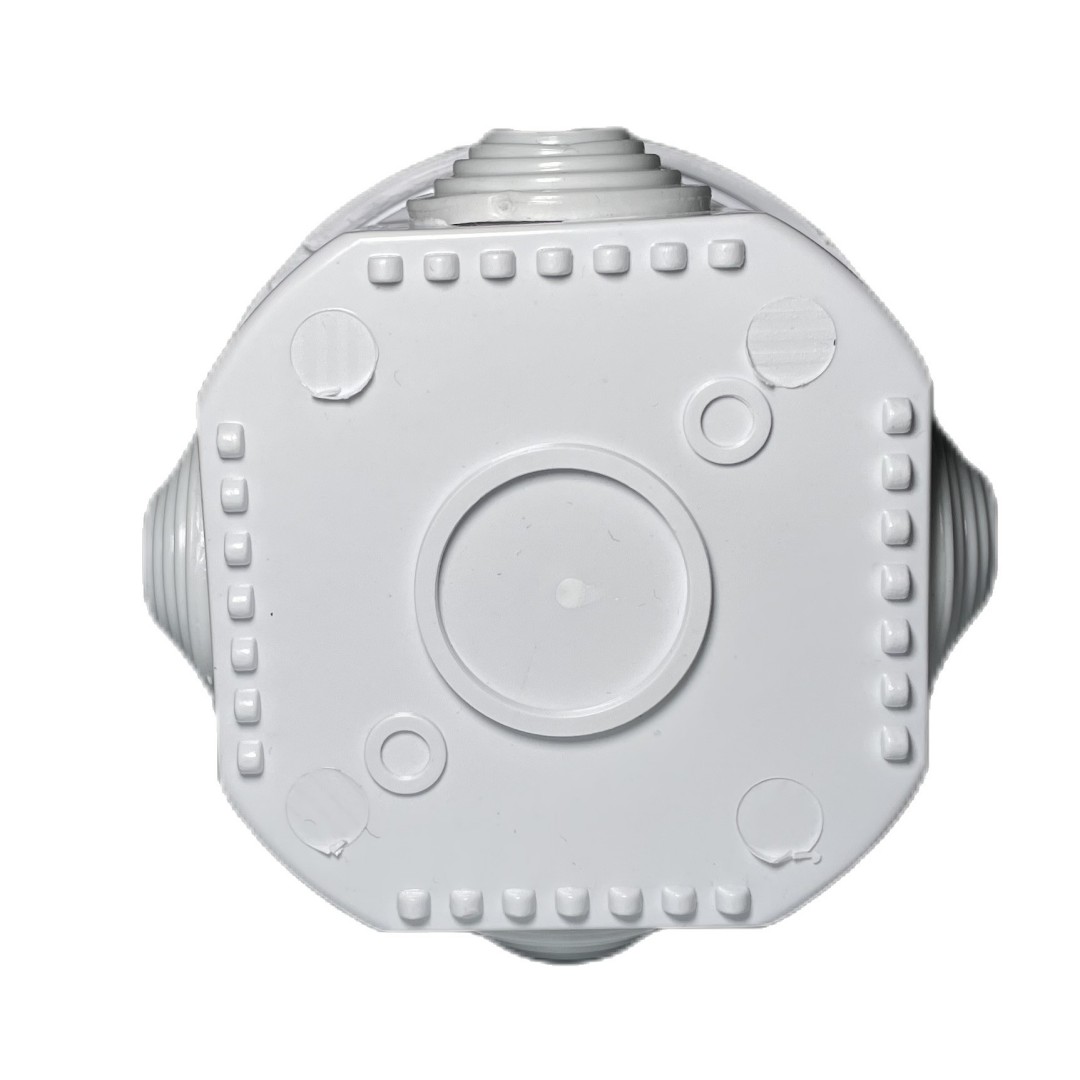

4 grommets holes 50x50mm 80x50mm Mureva Box IP55 Grey ABS plastic Junction Box with rubber grommets
Body material: ABS
Stopper material: PVC
Material characteristics:
Impact heat low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Application:
Suitable for indoor and outdoor eledria communicartion, fire lighting apparatus, iron and steel smelling, petrochemical industry, ©ledron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
Installation:

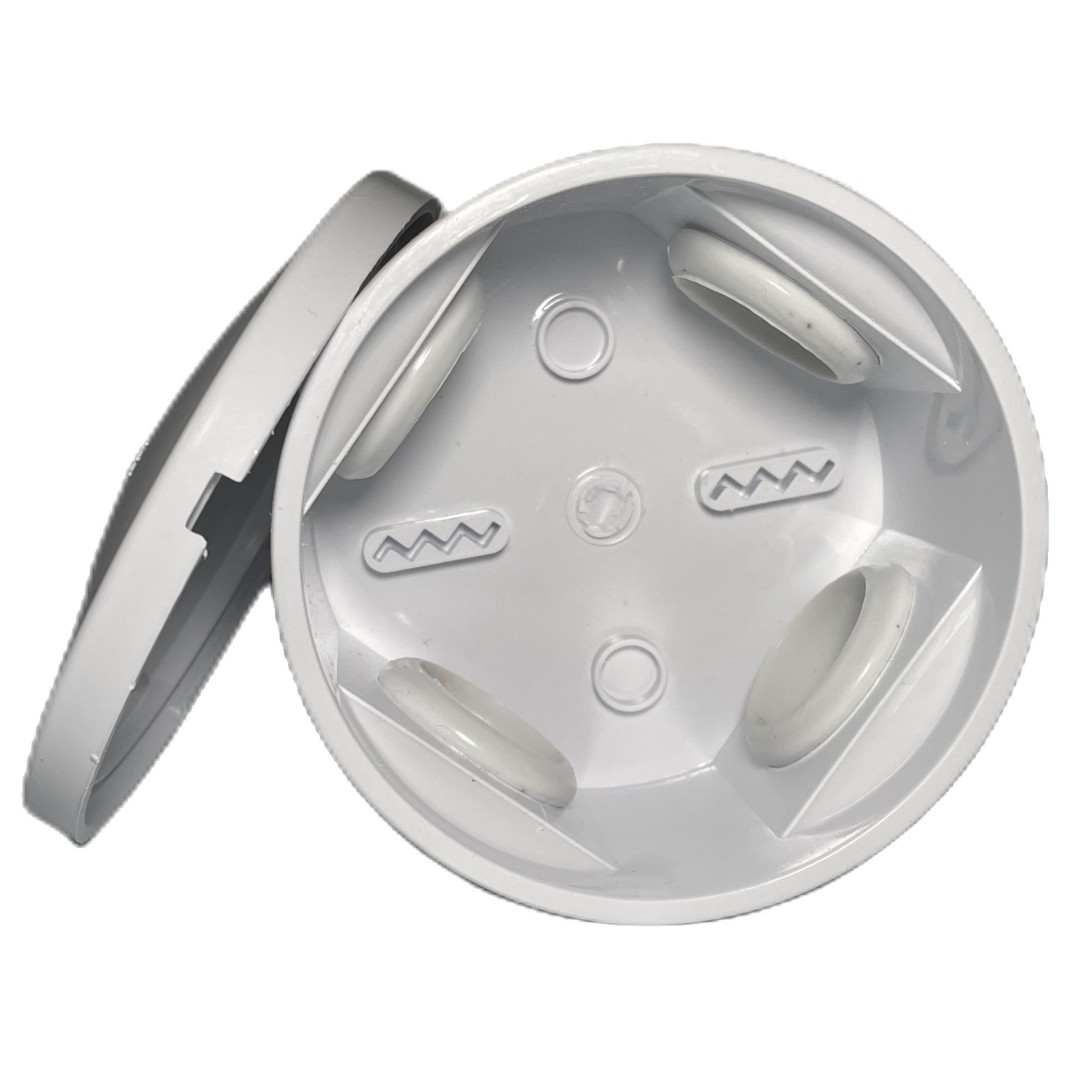

1. lnside: There are the installation holes in the base for drcuit board ordin rail.
2. Outside: The products can be directly fixed on the wall or other flat board with screws or nails via the screw holes In the base.
Outlet hole:
Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance.
| Model Code | LxWxH | Hole Qty | Hole Size | Protection | PCS/CTN |
| (mm) | (mm) | ||||
| RA 50×50 | 50x50mm | 4 Entry | 25mm | IP55 | 300 |
| RA 80×50 | 80x50mm | 4 Entry | 240 | ||
| RA 85x85x50 | 85x85x50mm | 7 Entry | 200 | ||
| RA 100x100x70 | 100x100x70mm | 7 Entry | IP65 | 100 | |
| RA 150x110x70 | 150x110x70mm | 10 Entry | 60 | ||
| RA 150x150x70 | 150x150x70mm | 8 Entry | 60 | ||
| RA 200x100x70 | 200x100x70mm | 8 Entry | 60 | ||
| RA 200x155x80 | 200x155x80mm | 10 Entry | 36mm | 40 | |
| RA 200x200x80 | 200x200x80mm | 12 Entry | 40 | ||
| RA 255x200x80 | 255x200x80mm | 12 Entry | 40 | ||
| RA 255x200x120 | 255x200x120mm | 12 Entry | 30 | ||
| RA 300x250x120 | 300x250x120mm | 12 Entry | 20 | ||
| RA 400x350x120 | 400x350x120mm | 16 Entry | 10 |
