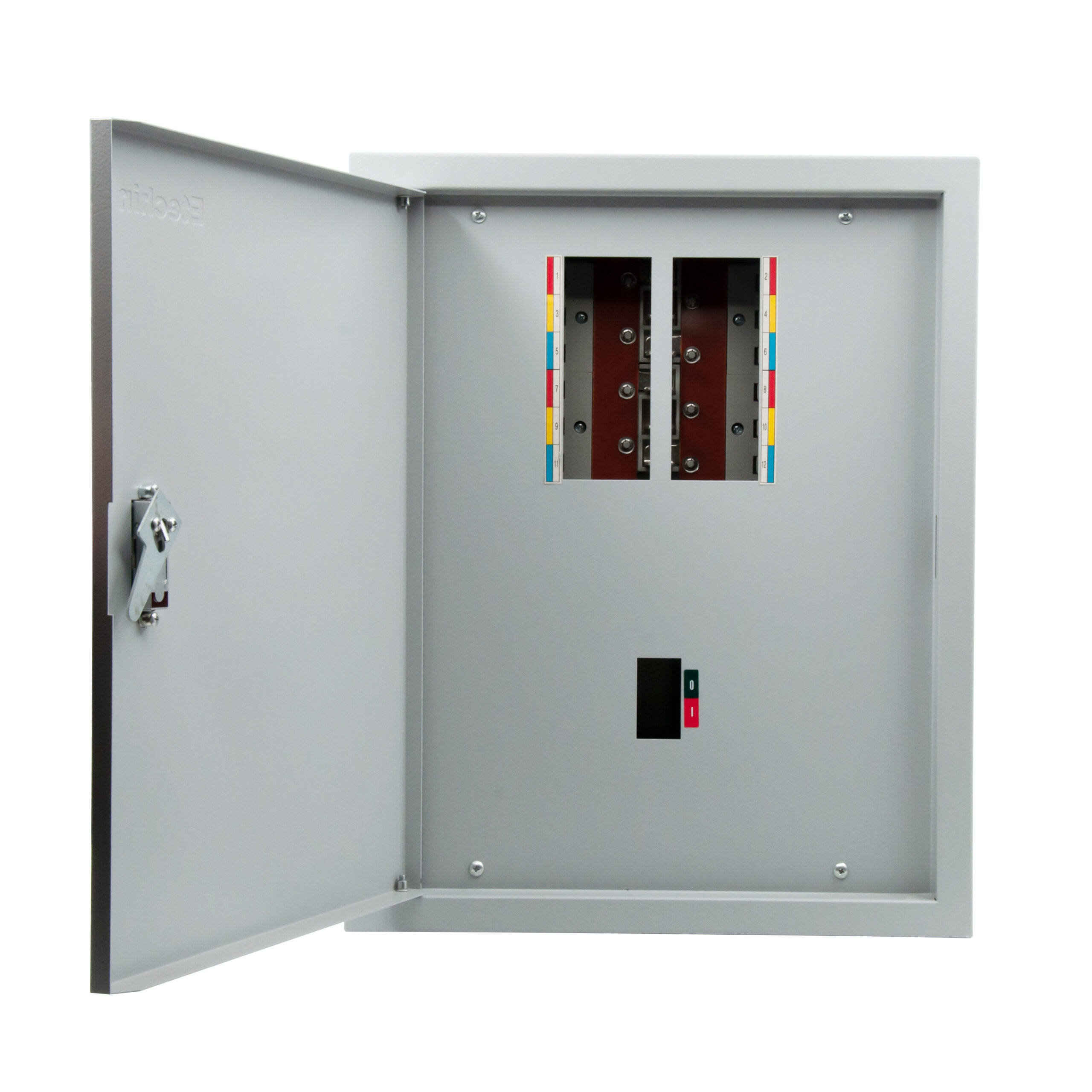

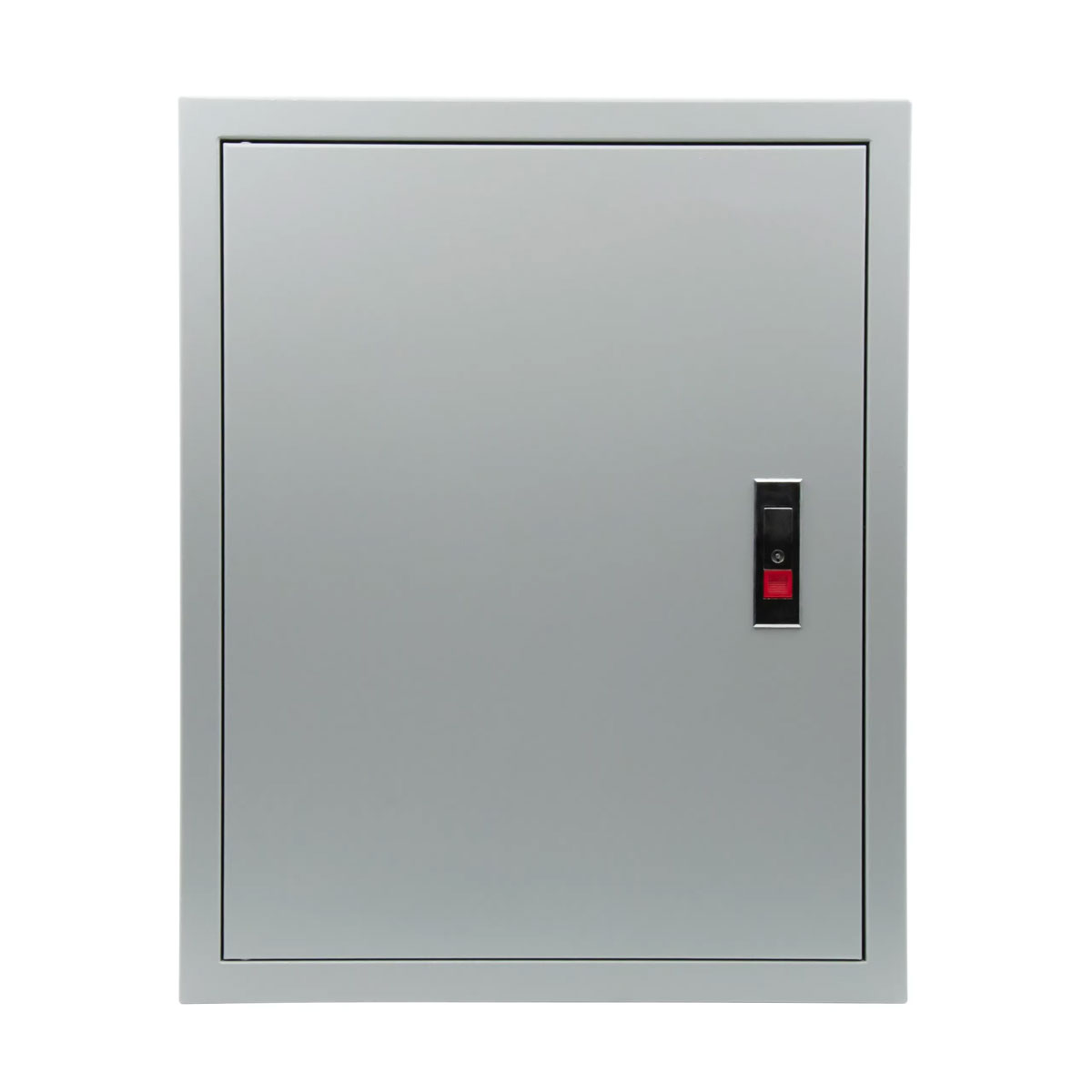

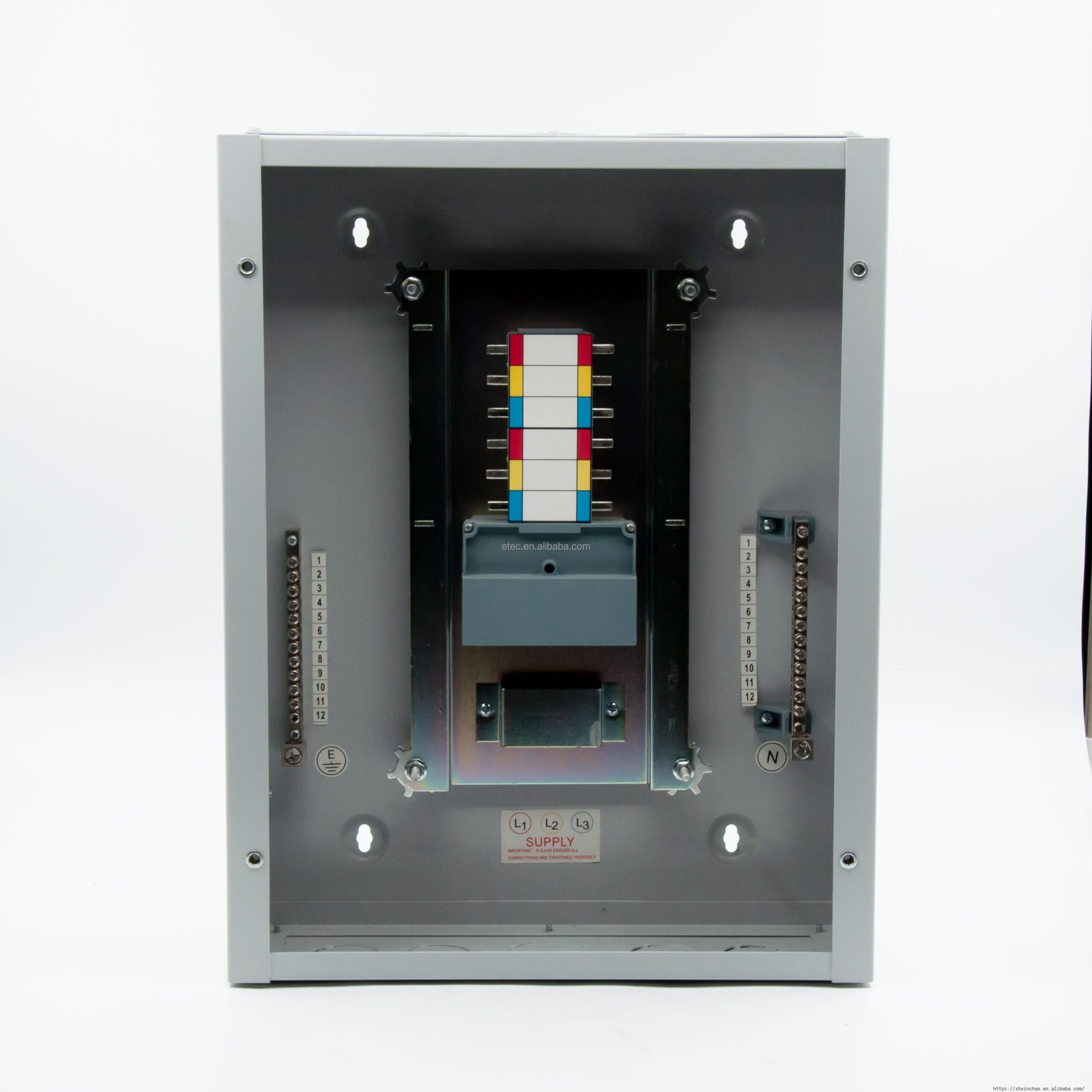

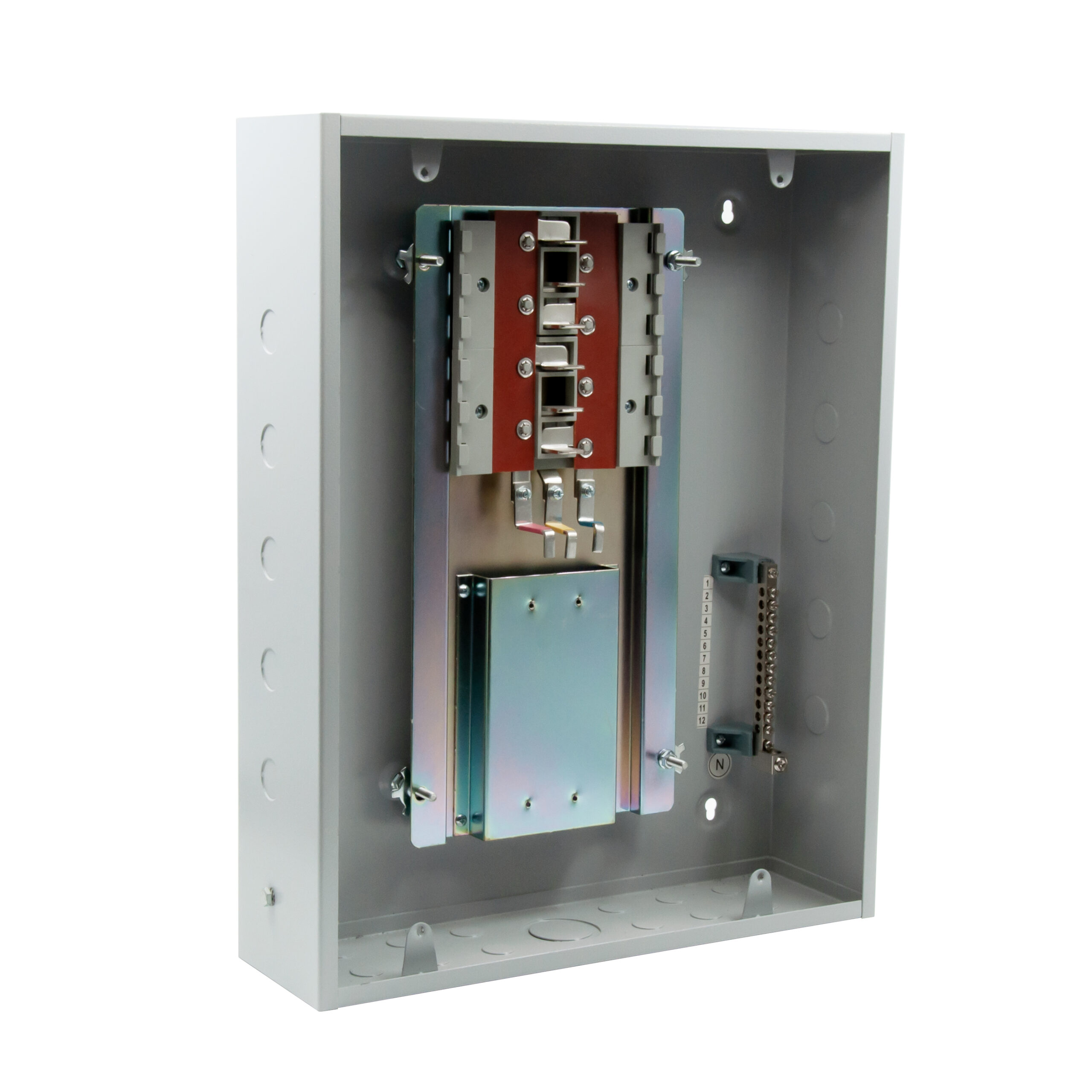

3 Phase Distribution box Consumer unit 200A 250A 4 6 8 12 14 16 Ways MCB MCCB Main Breaker Three Phase Metal Distribution Board

Original price was: $81.00.Current price is: $80.00.

rated voltage:380V,400V,415V
Brand Name:NewTrend
Place of Origin:China
Model Number:TD02
Rated Current:160A,200A,250A
Product Name:Distribution Box
Application:Electric Power Transmission
Color:Gray
Type:Distribution Box Electrical Boxes
SKU: 1601212781369 Category:
Description

Product Description
3 Phase 160A 200A 250A 4 6 8 12 14 16 Ways MCB MCCB Main Breaker Three Phase Metal Distribution Board

1. Galvanized 1.2mm sheet

2 .Main switch: MCB,ISOLATOR,RCCB,MCCB up to 250A

3 .Outgoing: upto 72poles way MCB

4. Plastic Lock/Metal Lock

5. Surface/flush type

6. Adjusted mounting plate

7. Powder coating Ral7035 texture

8. IP42 for Metal Enclosure

9. IEC61439-1

10. Extension Board 12poles way on top and bottom design

11. Adjustable rail suitable for most of the din rail type MCB









Additional information
Weight 5.9 kg
Dimensions 20 × 12 × 9 cm
Material

Steel
Size

150*50*30
Color

Gray
